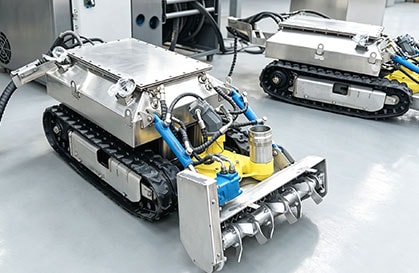

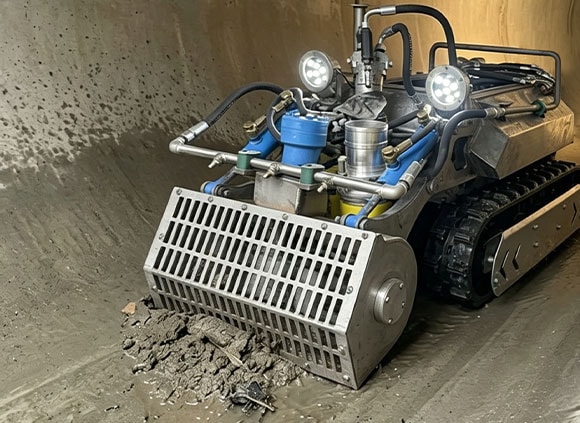

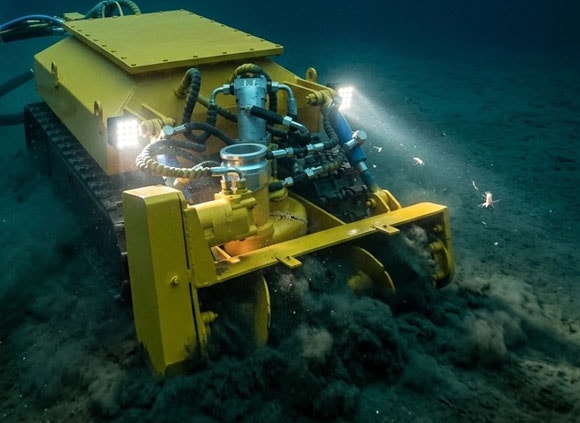

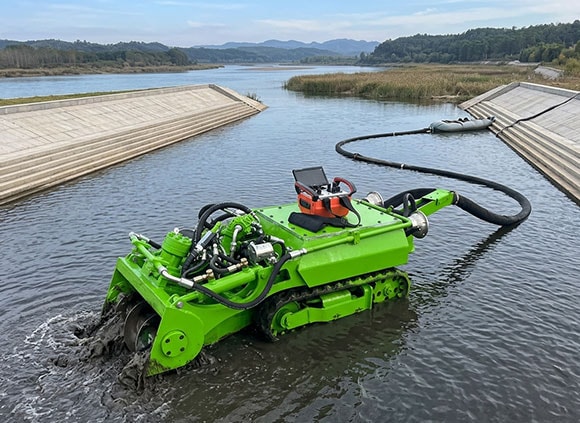

YG Intelligent Dredging Robot is a remote-controlled underwater cleaner for pipelines, tanks, rivers, and industrial ponds. Its hydraulic tracked drive navigates submerged sites to break up and extract sludge—keeping personnel out of confined spaces and away from toxic or explosive hazards.
Dredging Capacity
Dredging Width
Zero system shutdown. Zero secondary pollution. Zero personnel entry. Our closed-loop design extracts sludge without spillage or fugitive dust, and integrates seamlessly with downstream dewatering and resource recovery equipment. From narrow municipal sewers to chemical plants, oil fields, and waterway restoration—one robot, zero disruption. Engineered for the harshest conditions, and delivering results where traditional methods fall short.
| Model | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Size | 1500*500*650mm | 1500*600*650mm | 1600*700*650mm | 1600*850*700mm | 1650*960*750 | 1900*1200*750 |
| Slurry Pump Model | 3E-100Z170 | 3E-100Z170 | 4E-250ZJ45 | 4E-250ZJ45 | 4E-250ZJ45 | 4C-200Z125 |
| Dredging Width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| Track Speed | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s |
| Pump Diameter | 3 inch | 3 inch | 4 inch | 4 inch | 4 inch | 500kg |
| Pump Flow | 100m³ | 100m³ | 160m³ | 160m³ | 200m³ | 200m³ |
| Pump Head | 0-30meter | 0-30meter | 0-25meter | 0-25meter | 0-25meter | 0-25meter |

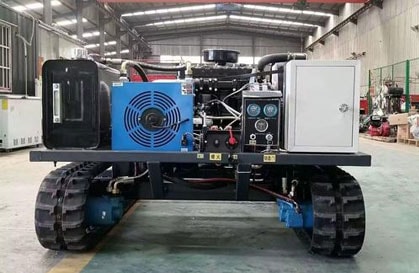

| Hydraulic Station Size | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main Motor Power | 18kw | 18kw | 22kw | 22kw | 22kw | 45kw |
| Hydraulic Pressure | 0-16Mpa | 0-16Mpa | 0-16Mpa | 0-16Mpa | 0-16Mpa | 0-16Mpa |
| Particle Size | 15mm | 15mm | 40mm | 40mm | 50mm | 60mm |
| Winch Speed | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min |
| Hydraulic Hose | 50m (Standard) | 50m (Standard) | 50m (Standard) | 50m (Standard) | 50m (Standard) | 50m (Standard) |

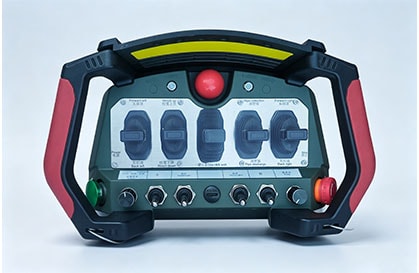

| Control System | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |

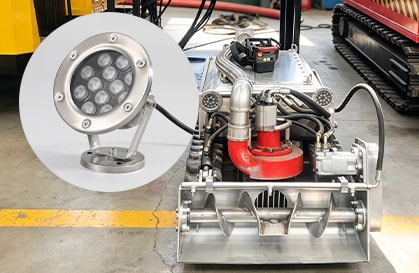

| Lighting System | Underwater LED x2 | Underwater LED x2 | Underwater LED x2 | Underwater LED x2 | Underwater LED x2 | Underwater LED x2 |
Sludge moves from bed to surface through sealed pipes. No spillage on site. No dust. No secondary pollution.

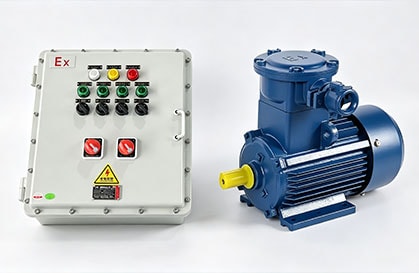

ATEX-certified motors available. Designed for chemical plants, oil depots, and coal processing facilities.
Cleans while pumps, reactors, or treatment lines keep running. No need to drain tanks or halt production.
Operator stays above ground. No confined-space entry. No contact with H₂S or methane.

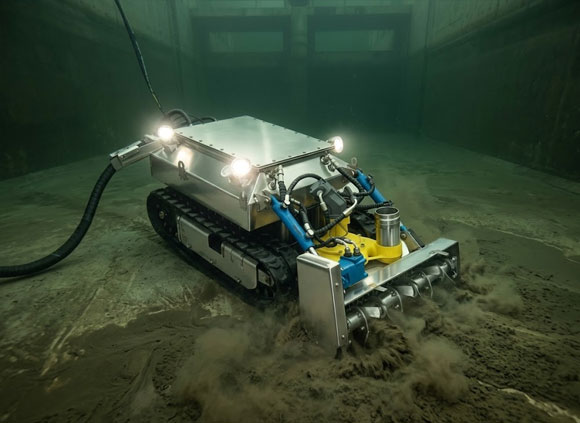

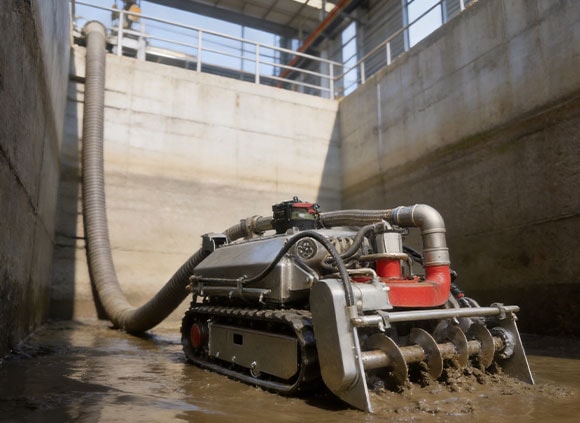

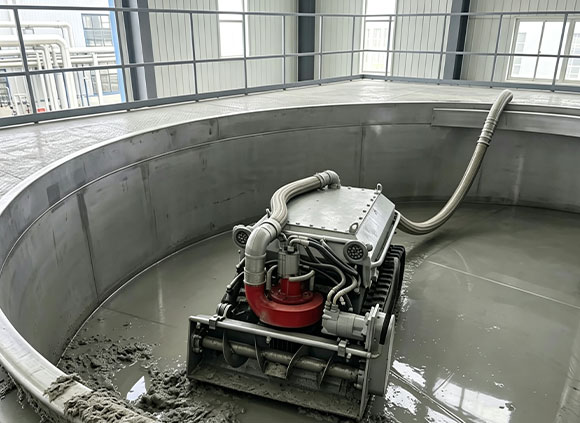

Reaches deep tanks, sumps, and settling ponds that other equipment can't access.

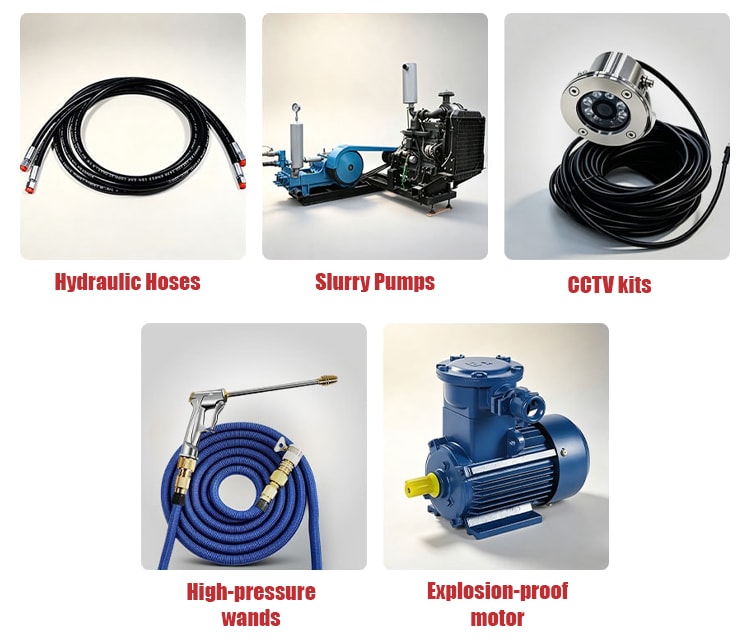

Choose from CCTV camera kit, high-pressure flushing wand, or diesel power pack. Add-ons, not overhauls.
